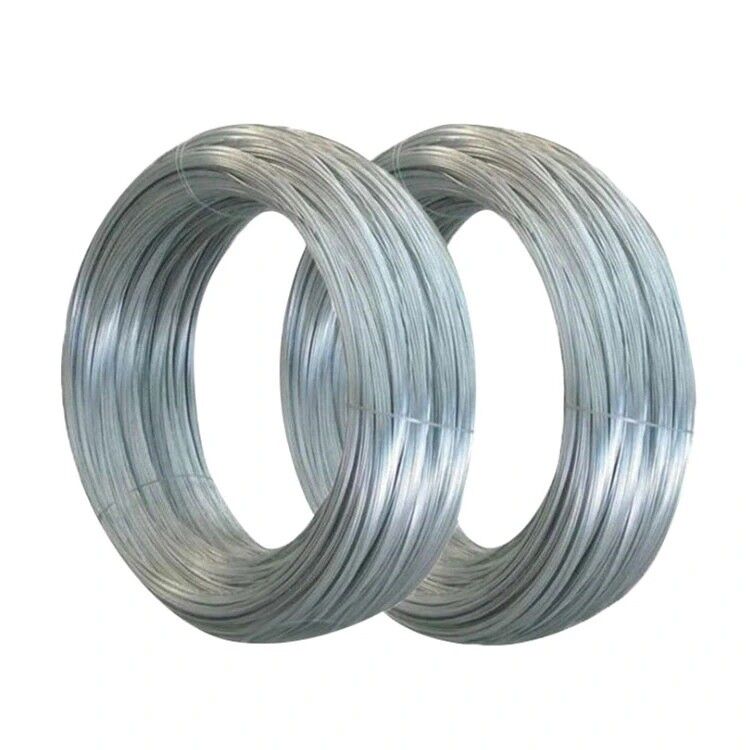

ASTM JIS En 0.18mm 304 316 201 Stainless Steel Wire Bright Surface

Product Details:

Place of Origin:	China
Brand Name:	TOPONE
Certification:	ISO9001:2015
Model Number:	0.15mm-12mm

Payment & Shipping Terms:

Minimum Order Quantity:	1000KG
Price:	Negotiation
Packaging Details:	Coil/Pallet/Spool/By customere request
Delivery Time:	1-15 days
Payment Terms:	D/P, Western Union, L/C, T/T
Supply Ability:	>10000KGS per week

Contact Now Chat Now

Detailed Product Description

Material:	316	Diameter:	0.15-12mm
Packing:	By Customer Request	Standard:	JIS G. EN. ASTM. DIN. GB Etc
Surface:	Bright	Supply Ability:	>500 Tons Per Month
Elongation:	10-15%	Durability:	Long-lasting
Packing:	Coil	Usage:	Nail Making
Highlight:	0.18mm 316 stainless steel wire , 304 316 stainless steel wire , ASTM 304 stainless steel wire rope

ASTM/JIS/En 0.18mm 304 316 201 Stainless Steel Wire

Description:
1) Grade: 201,202,301,304,304L,310S,316,316L,410,420,430,etc.
2) Standard: ASTM, DIN, GB, JIS, SUS
3) Dimension:0.25mm-15mm
4) Finish: Black/Bright/Pickled/Polished
5) Length: Unlimited or as customer requirements
6) Condition: Hot Rolled & Pickled, Hot Rolled Black Bar,Cold Drawn
7) Packing: Nylon bag or according to client's requirement

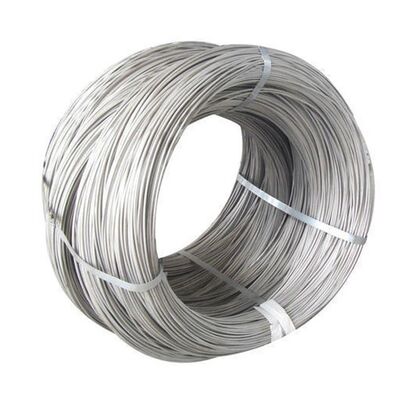

ASTM JIS En 0.18mm 304 316 201 Stainless Steel Wire Bright Surface 0

Mechanical properties

DIAMETER(MM)	TENSILE STRENGTH(MPA)			ELONGATION(%)
DIAMETER(MM)	SOFT-ANNEALED	SEMI-HARD	HARD	FOR SOFT-ANNEALED WIRE ONLY
0.20~0.30	640~980	_	_	≥20
0.30~0.60	590~930	_	_	≥20
0.60~1.00	540~880	830~1180	1180~1520	≥25
1.00~3.00	490~830	780~1130	1130~1470	≥25
3.00~6.00	490~830	730~1080	1080~1420	≥30
6.00~14.00	490~790	730~1030	_	≥30

Physical Properties

Diameter Tolerance & Oval Tolerance

Mechanical Properties

(mm)Dia.	(mm)Dia.Tolerance	Oval.Tolerance
0.030-0.050	±0.003	≤0.003
0.050-0.080	±0.004	≤0.004
0.080-0.10	±0.005	≤0.005
0.10-0.16	±0.007	≤0.007
0.16-0.28	±0.010	≤0.010
0.28-0.50	±0.013	≤0.013
0.50-0.90	±0.015	≤0.015
0.90-1.60	±0.02	≤0.02
1.60-2.80	±0.03	≤0.03
2.80-5.00	±0.04	≤0.04
5.00-9.00	±0.05	≤0.05
9.00-12.00	±0.06	≤0.06
12.00-14.00	±0.07	≤0.07

Type	(mm)Dia	(N/mm2)Tensilestrength	(%)Elongation
SUS304.SUS304L	0.02-0.05	880-1130	≥10
SUS316.SUS316L	0.02-0.05	650-900	≥8
SUS304.SUS304L SUS309S SUS310S SUS316.SUS316L SUS321	0.05-0.16	650-900	≥20
	0.16-0.50	610-860	≥20
	0.50-1.60	570-820	≥30
	1.60-5.00	520-770
	5.00-14.00	500-750
SUS304J3	0.05-0.16	620-870	≥20
	0.16-0.50	580-830	≥20
	0.50-1.60	540-790	≥30
	1.60-5.00	500-750
	5.00-14.00	490-740

Chemical Composition

AISI Grade	Chemical Composition(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	=<0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	9.00~13.50	18.00~20.00	-
316	=<0.045	=<1.00	=<2.00	=<0.045	=<0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	=<0.12	=<0.75	=<1.00	=<0.040	=<0.030	=<0.60	16.00~18.00	-
430A	=<0.06	=<0.50	=<0.50	=<0.030	=<0.50	=<0.25	14.00~17.00	-

How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:

1	Your wire application	Required
2	Wire Grade	Required
7	Wire Shape and Size	Required
3	Wire Surface Finish	Required
4	Wire Tensile Strength Level	Required
5	Quantity/Weight	Required
6	Wire Manufacturing Standards	Required
8	Wire Tolerence	Prefered
9	Delivery Time	Prefered
10	Wire Package	Optional

ASTM JIS En 0.18mm 304 316 201 Stainless Steel Wire Bright Surface 2
