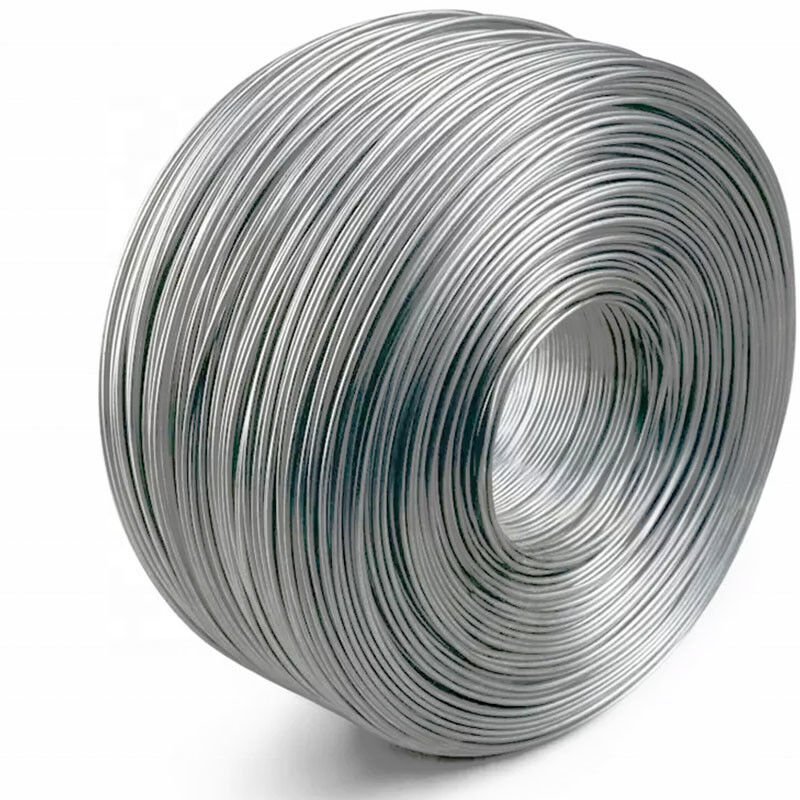

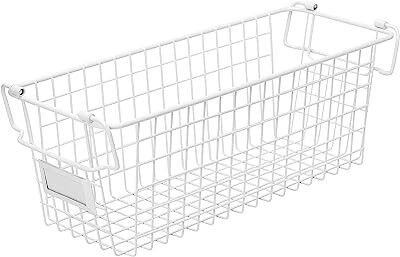

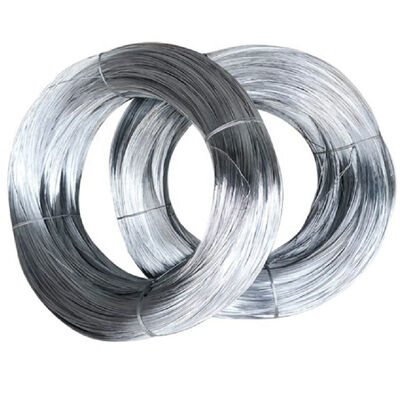

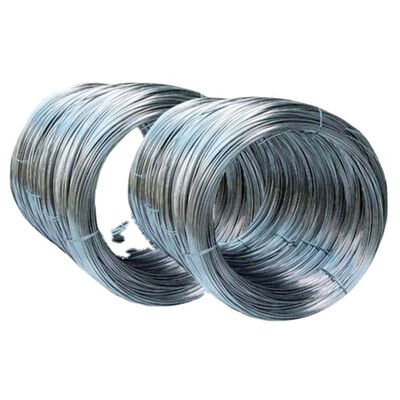

Kitchen Baskets Steel Wire Forming Cold Drawn Customized Bending Ss Wire
Kitchen Baskets Steel Wire Forming Cold Drawn Customized Bending Ss Wire
Basic Properties
Place of Origin:
China
Brand Name:
Toponewire
Certification:
ISO9001:2015
Model Number:
201/302/304/316/316L
Trading Properties
Minimum Order Quantity:
500KG
Payment Terms:
D/P, Western Union, L/C, T/T
Supply Ability:
500kg per month
Product Summary
Stainless Steel EPQ Wire/Stainless Steel Wire for kitchen baskets Material 304/316/316L Standard AISI, ASTM, DIN, GB, JIS, SUS Diameter 0.8mm-18.0mm Surface finish Electrolysis bright, Bright, Polish, Matt. Certification ISO9001: 2015 Packing Woven bag, coil, others are also available according to ...
Product Custom Attributes
Highlight
high temperature resistance wire
,epq stainless steel wire
Material:
304/316/316L
Diameter:
0.15-12mm
Surface:
Bright Or Soap Cotaed
Packing:
By Customer Request
Standard:
JIS G. EN. ASTM. DIN. GB Etc
Supply Ability:
>500 Tons Per Month
Product Description
Detailed Specifications & Features
Stainless Steel EPQ Wire/Stainless Steel Wire for kitchen baskets
| Material | 304/316/316L |
| Standard | AISI, ASTM, DIN, GB, JIS, SUS |
| Diameter | 0.8mm-18.0mm |
| Surface finish | Electrolysis bright, Bright, Polish, Matt. |
| Certification | ISO9001: 2015 |
| Packing | Woven bag, coil, others are also available according to client' requirement. |
| Application | Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire, conveyors, jewelry, springs, brush welding, electrical, wire line, craft and many more applications. |
Topone Advantages
1. ISO9001:2015; RoHS Certificate
2. ASTM,JIS,EN Manufacturing Standards
3. Dia 0.30mm-18.0mm;Precision Size
4. Low MOQ;Fast Divery; Large Stocking
5. 20+ Years Experience;Skilled Workers; Vast Succesful Cases
6. Modern Facility;Advanced Equipment;Rapid Transportaiton
Mechanical properties
|
|
TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
|
|
|
|
FOR SOFT-ANNEALED WIRE ONLY | |
| 0.20~0.30 | 640~980 | _ | _ | ≥20 |
| 0.30~0.60 | 590~930 | _ | _ | ≥20 |
| 0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
| 1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
| 3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
| 6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
| Diameter Tolerance & Oval Tolerance | Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Chemical Composition
| AISI Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
| 430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel EPQ Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
