304 Stainless Steel Nails Wire 0.8-15mm For Construction Industrial Use
304 ms annealed wire
,304lv stainless steel wire 0.8mm
,304lv stainless steel wire 15mm
304 Stainless Steel Nail Wire for construction / industrials use
304 Stainless Steel Nail Wire 0.8-15mm For Construction Industrial Use
Product Description
We are a coveted business organization engaged in catering to the variegated requirements of the customers by bringing forth durable Stainless Steel Nail Wire. These wires are demanded extensively by our clients across the country owing to their tempting characteristics. Customized as per the variegated demands of customers, these wires are available at industry leading prices. We also fabricate and design our products using optimum-grade raw material earned certified source.
Features:
Super-fine stranded wire
Flame tested
Maximum flexibility
Specifications:
- Size : 0.8mm to 6.0mm (0.031 to 0.236)
- Grades : 304, 316, 304HC, 302HQ
- Finish : Matt, Soap Coated
- Temper : Soft, ¼ Hard

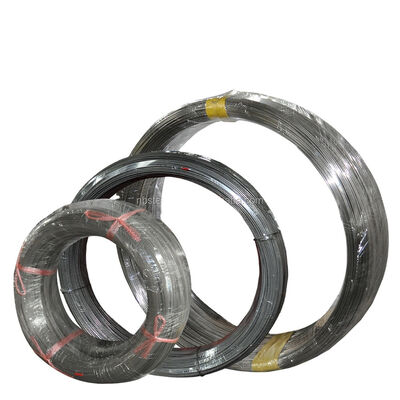

- Packing : Coils 200-500 kgs, 2-3 Coils on carriers.
Mechanical properties
| TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
| | | FOR SOFT-ANNEALED WIRE ONLY | |
| 0.20~0.30 | 640~980 | _ | _ | ≥20 |
| 0.30~0.60 | 590~930 | _ | _ | ≥20 |
| 0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
| 1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
| 3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
| 6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
| Diameter Tolerance & Oval Tolerance | Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Chemical Composition
| AISI Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
| 430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
