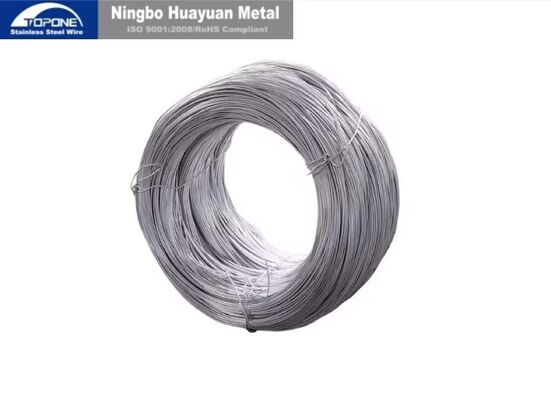

5mm EPQ Brush Welding Wire Medical Wire Forming Professional High Flexibility
5mm EPQ Brush Welding Wire Medical Wire Forming Professional High Flexibility
Basic Properties
Place of Origin:
China
Brand Name:
Toponewire
Certification:
ISO9001:2015
Model Number:
201/302/304/316/316L
Trading Properties
Minimum Order Quantity:
500KG
Payment Terms:
D/P, Western Union, L/C, T/T
Supply Ability:
500kg per month
Product Summary
AISI 304 3.0 mm EPQ stainless steel bright wire Material304StandardAISI, ASTM, DIN, GB, JIS, SUSDiameter0.8mm-18.0mmSurface finishElectrolysis bright, Bright, Polish, Matt.CertificationISO9001: 2015PackingWoven bag, coil, others are also available according to client' requirement.ApplicationTie wire...
Product Custom Attributes
Highlight
316l stainless steel wire 0.15mm
,304 5mm stainless steel wire
,316l stainless steel wire 12mm
Material:
AISI 304
Diameter:
0.15-12mm
Surface:
Bright Or Soap Cotaed
Packing:
By Customer Request
Standard:
JIS G. EN. ASTM. DIN. GB Etc
Supply Ability:
>500 Tons Per Month
Product Description
Detailed Specifications & Features

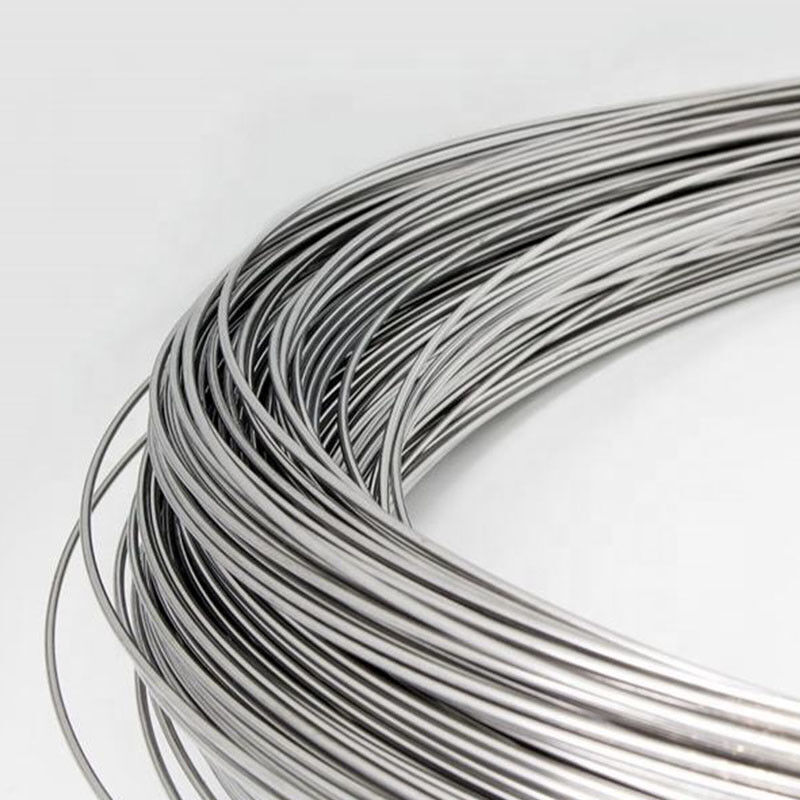

AISI 304 3.0 mm EPQ stainless steel bright wire
| Material | 304 |
| Standard | AISI, ASTM, DIN, GB, JIS, SUS |
| Diameter | 0.8mm-18.0mm |
| Surface finish | Electrolysis bright, Bright, Polish, Matt. |
| Certification | ISO9001: 2015 |
| Packing | Woven bag, coil, others are also available according to client' requirement. |
| Application | Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire, conveyors, jewelry, springs, brush welding, electrical, wire line, craft and many more applications. |
1) We are a professional stainless steel wire factory for over 20 years;
2) Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable.
3) We promise, if the chemical elements isn't up to the national standard or as said in the contract, we'll refund 100% payment.
Mechanical properties
| TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
| | | FOR SOFT-ANNEALED WIRE ONLY | |
| 0.20~0.30 | 640~980 | _ | _ | ≥20 |
| 0.30~0.60 | 590~930 | _ | _ | ≥20 |
| 0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
| 1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
| 3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
| 6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
| Diameter Tolerance & Oval Tolerance | Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Chemical Composition
| AISI Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
| 430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel EPQ Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
