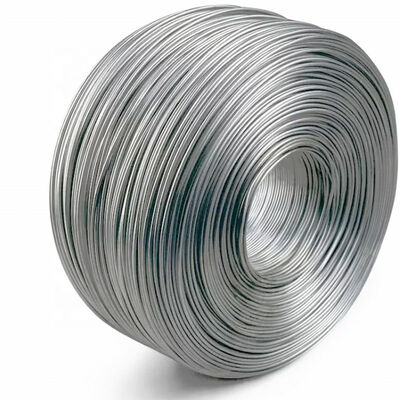

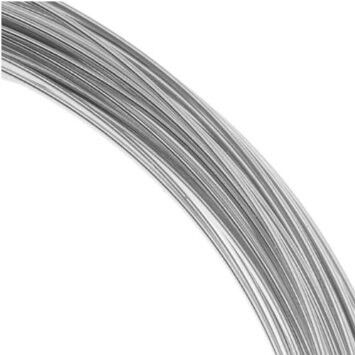

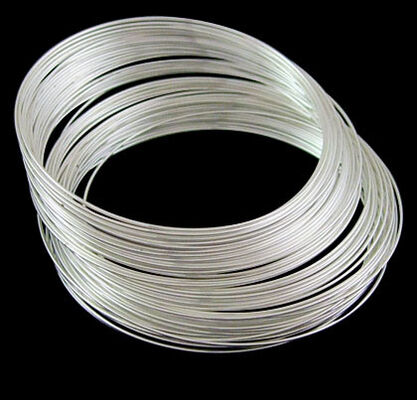

Stainless Steel Forming High Temperature Resistance Wire Bright Surface
stainless steel bendable wire
,bending ss wire
Stainless steel forming wire 0.3-18mm offered with custom tensile strength
Products:
1) Grade: SS201, 202, 304(L), 308(L),309(L),310(S),316(L),347 etc.
2) Standard: ASTM, DIN, GB, JIS, SUS
3) Diameter: 0.8mm-18.0mm
4) Certification: ISO9001: 2015
5) Coil weight: 20KG, 50KG, 100KG, etc.
6) Application: Mesh weaving, Soft pipe, Isolation, Shipbuilding, Automobile, Chemical industry
Toponewire has focus on stainless steel wire for more than 26 years, we holding more than 1000tons stainless steel wire in stock, samples can be arranged by you request.
Mechanical properties
|
|
TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
|
|
|
|
FOR SOFT-ANNEALED WIRE ONLY | |
| 0.20~0.30 | 640~980 | _ | _ | ≥20 |
| 0.30~0.60 | 590~930 | _ | _ | ≥20 |
| 0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
| 1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
| 3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
| 6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
| Diameter Tolerance & Oval Tolerance | Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Chemical Composition
| AISI Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
| 430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel Forming Wire in Efficiency?
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
For any further information, feel free to comments below or simply drop a email to sales02@stainlesssteel-wires.com.Our experienced group will offer our best service.
