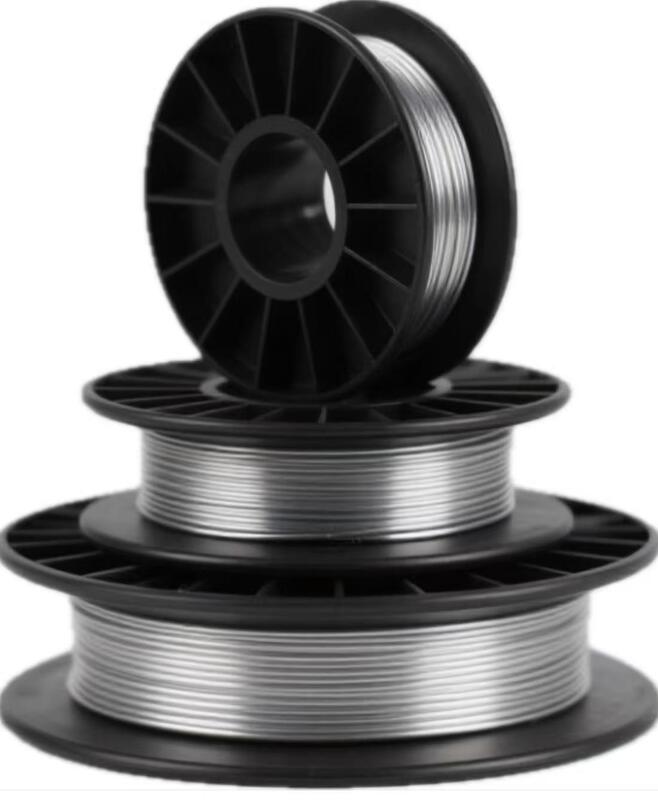

0.7mm 316 Stainless Steel Spring Wire with Soap-coated Surface

0.7mm 316 Stainless Steel Spring Wire with Soap-coated Surface
Basic Properties
Place of Origin: China
Brand Name: TOPONE
Certification: ISO,SGS,RosH
Model Number: 316
Trading Properties
Minimum Order Quantity: 1000kg
Price: Negotiation
Payment Terms: L/C,T/T
Supply Ability: >1000 Tons per month
Tags:

stainless steel wire

ss spring wire

ss wire coil
Product Summary
Stainless steel spring wire for fishing hook, fishing reel Fishing Hook Reel Spring Tempered Stainless Steel Wire Coil Or Special Packing Partner With ToponeWire, Customize Your Solutions, and Take Your Company to a World-Class Level ToponeWire has a long history of producing only the highest ...
Product Custom Attributes
Highlight

316 stainless steel spring wire

,

en stainless steel spring wire

Stardard:
JIS,EN,ASTM,DIN,GB
Surface Treatment:
Soap-coated
Grade:
316
Application:
Compression/Torsion/Extention Spring
Packing:
Coil/Pallet
Diameter:
0.7mm
Type:
Hard
Tensile Strength:
1850-2150N/mm2
Certification:
ISO,SGS,RosH
Product Description
Detailed Specifications & Features

Stainless steel spring wire for fishing hook, fishing reel

Fishing Hook Reel Spring Tempered Stainless Steel Wire Coil Or Special Packing



Partner With ToponeWire, Customize Your Solutions, and Take Your Company to a World-Class Level


ToponeWire has a long history of producing only the highest quality stainless steel wire for the spring industry. Our customers have come to rely on the engineering and metallurgical services provided by Sumiden Wire. When you need a reliable, domestic producer who can provide unsurpassed quality, service, and delivery, give us a call.


Toponewire has stocks of most types of spring wire, which is the raw material in the production of springs and spring solutions.


Types of spring wire

Grade Correspond standards General chemical component(%)
AISI BS DIN JIS C Mn Cr Ni Mo
AISI302 302 302S26 1.4310 SUS302 0.08 1.25 17.5 8.1 -
AISI304 304 304S15 1.4301 SUS304 0.07 1.25 18.1 8.6 0.1
AISI316 316 316S42 1.4401 SUS316 0.05 1.20 17.6 8.4 2.3



Tensile strength of spring stainless steel

Diameter
(mm)		 Classify
WPA WPB
AISI302, 304, 316 AISI302, 304
N/mm² N/mm²
0.20 1650 ~ 1900 2150 ~ 2400
0.23 ~ 0.40 1600 ~ 1850 2050 ~ 2300
0.45 ~ 0.60 1600 ~ 1850 1950 ~ 2200
0.65 ~ 1.00 1530 ~ 1780 1850 ~ 2100
1.20 ~ 1.40 1450 ~ 1700 1750 ~ 2000
1.60 ~ 2.00 1400 ~ 1650 1650 ~ 1900
2.30 ~ 2.60 1320 ~ 1570 1550 ~ 1800
2.90 ~ 4.00 1230 ~ 1480 1450 ~ 1700
4.10 ~ 4.50 1100 ~ 1350 1350 ~ 1600




Tag:

ss spring wire,



spring tempered stainless steel wire,



tempered Stainless Steel Spring Wire
