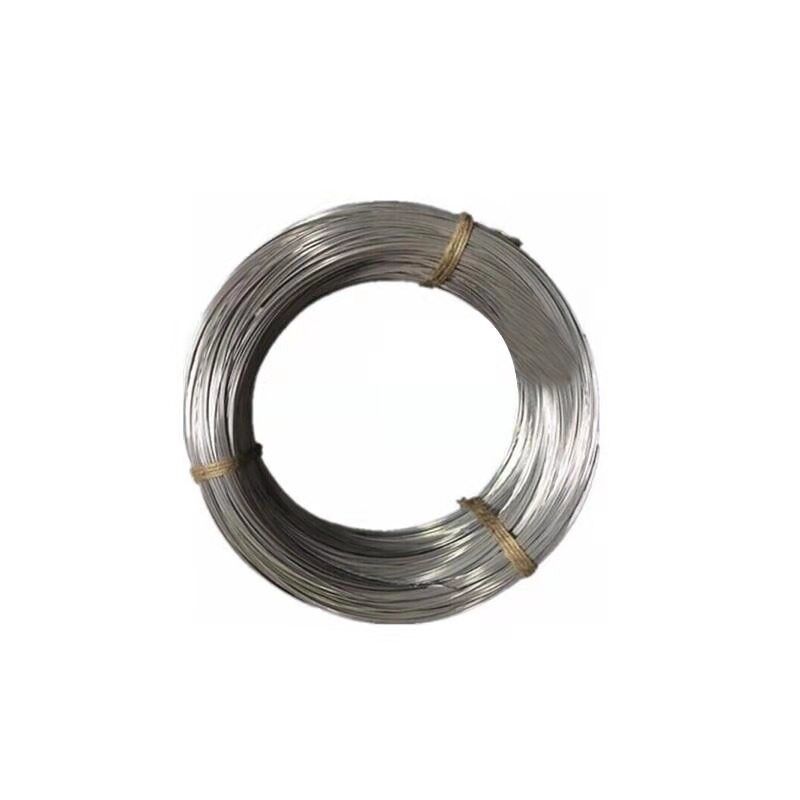

0.16mm Diameter 304 Stainless Steel Spring Wire
304 stainless steel spring wire
,12mm stainless steel spring wire
TopOne 0.16mm 304 Stainless Spring Wire
Key Advantages
-
Superior Fatigue Life: Achieves ASTM 12+ grain size, reducing stress points. Proven 300% longer fatigue life in high-cycle applications (>1 million cycles) vs. standard 304 wire.
-
Exceptional Consistency:
-
Ultra-tight diameter tolerance: ±0.01mm at 3mm (40% better than ISO 8458).
-
Minimal lot variation: Elastic Modulus (193 ±3 GPa), Tensile Strength (1850-2100 MPa). Ensures reliable fit and function.
-
-
Enhanced Corrosion Resistance: Proprietary passivation creates a denser, more uniform protective layer. Passes 72-hour salt spray (ASTM B117) with Class A surface (no pitting), outperforming 304 in harsh environments.
-
Long-Term Reliability & Force Retention: Very low stress relaxation (≤9.5% after 1000 hrs @ 200°C). FEA-validated for >15-year service in critical systems where standard 304 fails.
-
Full OEM Support: Each coil includes detailed metallurgical certification (chemistry, torsion tests). Backed by 30+ years expertise for custom requirements (e.g., creep resistance, cryogenic toughness).
Key Advantages at a Glance
| Feature | Specification | Benefit |
|---|---|---|
| Diameter | 0.16 ±0.005mm | Precision-calibrated for heavy-load springs & large-scale assemblies. |
| Material | AISI 304 Stainless Steel | Superior corrosion resistance (saltwater/chemical exposure). |
| Tensile Strength | 215-2400 MPa | Withstands extreme cyclic loading & high-impact environments. |
| Surface Finish | Bright/Soap Coated | Reduces friction, extends spring lifespan. |
| Certifications | ASTM A313, RoHS Compliant | Guaranteed aerospace/industrial compliance. |
| Spool | 10KG coils | Minimizes waste, optimizes production efficiency. |
Why Choose Our 0.16mm Spring Wire?
✅ Industrial-Grade Resilience
Optimized for springs requiring high load capacity (valves, agricultural machinery, suspension systems).
✅ Traceable Quality
Sourced from Tsingshan/Yongxing mills with batch-specific material certifications.
✅ Heat & Corrosion Resistant
Performs in temperatures up to 870°C and harsh outdoor/chemical environments.
Typical Applications
-
Industrial: Conveyor systems, hydraulic valves, heavy equipment
-
Automotive: Suspension coils, clutch springs, brake components
-
Construction: HVAC dampers, seismic bracing, marine hardware
-
Energy: Oil/gas valve springs, turbine components
Order Specifications
| Parameter | Detail |
|---|---|
| Standard Diameter | 0.16mm |
| Tolerance | ±0.005mm |
| Spool Weight | 10KG |
| Mill Origin | Tsingshan, Yongxing (China) |
| Condition | Spring-tempered, annealed |
| MOQ | 1000kg (Sample coils available) |
